Introduction:

*One working circle, one frame.

* The machine heads automatically back to the origin position, easy operation.

* Feeding system adopts imported linear guide pair, with high accuracy and smooth working.

* Size tolerance compensation is available to increase welding precision.

*Common profile fixture along with the machine can meet various height profiles' processing requirement.

*The length located by ball screw makes high accuracy.

*Back plates are convenience to change, when connecting joints, the two clamping boards feed symmetrically results parallel welding, increase the welding strength.

* Imported computer control system, easy operation and high stability.

Technical Parameter:

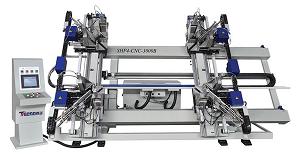

Model                                                    SHP4-CNC-3000B

Input voltage                                        380V/50Hz

Input power                                          10Kw

Spindle power                                     5.5Kw

Air pressure                                         0.6-0.8MPa

Air consumption                                  200L/min

Welding height                                     25-150mm

Max. Welding width                              140mm

Welding range                                      400×400-1800×3000mm

Overall dimension                               5000×2000×2860mm
