Introduction:

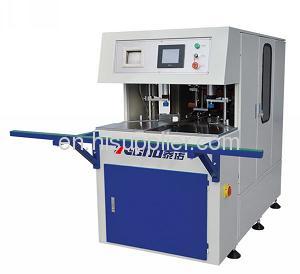

* For PVC profile welding seam cleaning.

* Can clean multi-shaped welding seams, clean the up/bottom, and the outside vertical surface etc. at the same time.

* It adopted Delta server and advanced LCD touched screen.

* It can store hundreds of programs, fit for various profile processing.

* It has characteristics of reliability, high processing quality, high efficiency, and easy

Technical Parameter:

Model                                                    SQJ-CNC-120B-5

Input voltage                                        380V/50Hz

Input power                                          2kw

Air pressure                                         0.5-0.8MPa

Air consumption                                 150L/min

Motor rotation speed                          2800r/min

Profiles width                                       20-120mm

Profiles height                                     20-120mm

Groove width                                        3mm

Groove depth                                       0.3mm

Overall dimension                             1700×900×1600mm
