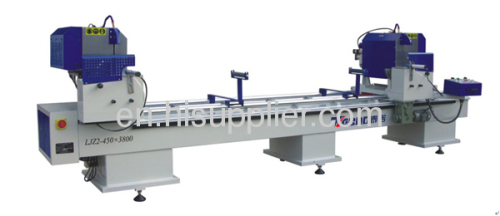

Introduction:

* Used for cutting aluminum and PVC at 45° 90°.

* The right head can be adjusted horizontally by the motor.

* Two heads work independently or together.

*Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

Technical Parameter:

Model                                            LJZ2-450×3800

Input voltage                                380V/50Hz

Input power                                  3.55Kw

Air pressure                                 0.4-0.6MPa

Air consumption                          200L/min

Motor rotation speed                  2800r/min

Cutting length                               360-3800mm

Cutting width                                 ≤120mm

Cutting height                               ≤200mm

Cutting angle                                90° 45° -45°

Saw feeding speed                     0-3m/min

Saw blade standard                    φ450×4×φ30×Z120

Overall dimension                       4800×1300×1450mm
